Multi-Parameter Laser Imaging in Flames
LaVision’sFlameMasterlaser imaging systems are designed for multiparameter measurements with high spatial and temporal resolution. The systems provide in-situ and online flame imaging with quantitative information about species (particle) concentration, flame composition and flame temperature. For each application a dedicated set of hardware and software modules is provided allowing straightforward upgrades for different flame imaging applications.
Simultaneous LIF imaging of reaction zone (OH-LIF) and unburnt fuel

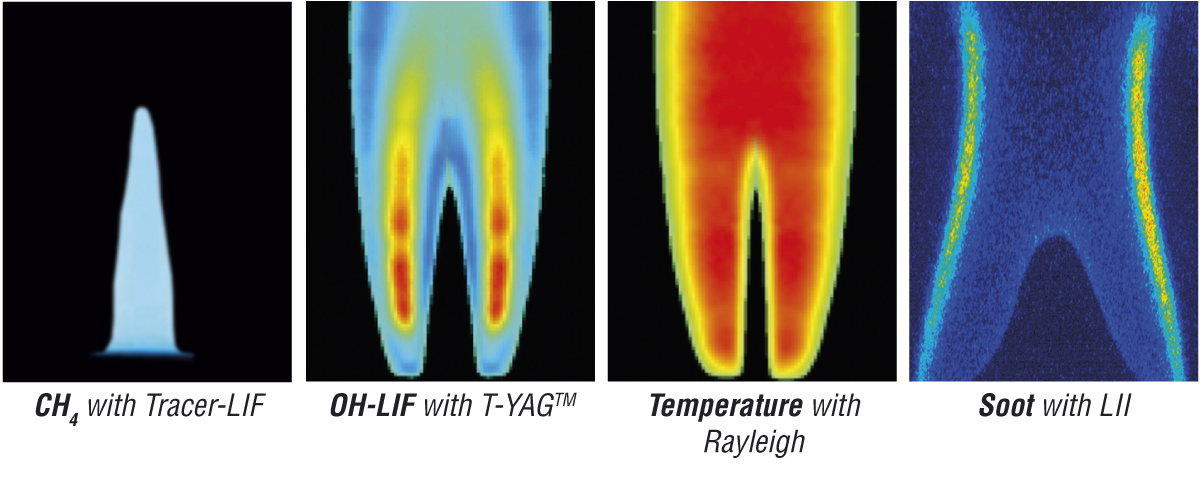

Multi-parameter laser imaging in a methan-air flame carried out with theFlameMaster Multifunctionallaser imaging system.
