    (Laser) Imaging in Flames

    LaVision‘s FlameMaster system family is designed to find new concepts for the realization of more efficient and cleaner combustion devices. These (laser) imaging systems are designed for multi-parameter measurements in all kind of flames with high spatial and temporal resolution.

    Our FlameMaster imaging systems support online flame monitoring in industrial devices and provide quantitative information about species (particle) concentration, gas composition and flame temperature in laser illuminated flame areas. For each imaged combustion parameter a dedicated set of hardware and software modules is provided offering the possibility for straightforward system upgrades. This modular nature for imaging upgrades provides full flexibility for different flame imaging applications.

    FlameMaster inspex

    Imaging of flame strcuture (also in 3D) of excited flame species, λ-maps, soot temperature, 1D spectral flame imaging, flame oscillation analysis

    FlameMaster Multifunctional

    Laser imaging system for the measurement of unburnt fuel, OH and formaldehyde, flame temperature and soot concentration
    no-img no-img

    FlameMaster Raman

    Laser imaging system for the simultaneous measurement of all majority flame species (gas composition) and flame temperature

    FlameMaster Tunable LIF

    Laser imaging system for the measurement of flame species and radicals (OH, NO, CH, CN, CO …)
    no-img no-img

    FlameMaster High-Speed

    Time-resolved flame imaging

    FlameMaster 3D

    Tomographic flame imaging
    no-img no-img

    Flow Field Imaging in Flames

    FlowMaster PIV systems for multidimensional and time-resolved flow field imaging in flames

    Multi-Parameter Laser Imaging

    Simultaneous imaging of reaction zone, fuel transport and flow structure
    no-img no-img

    FlameMaster System Components

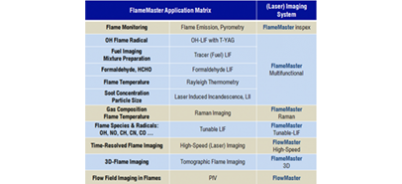

    FlameMaster Application Matrix

    湍流火焰OH浓度场和速度场同步测量技术取得进展



    FlameMaster
    System Features
    • integrated and modular system designs
    • complete hardware operation under DaVis software control
    • laser sheet correction incl. laser beam absorption compensation
    • most efficient LIF technique for each application and flame radical
    • combination of techniques for multi-parameter flame imaging
